Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining

    Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers

    Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers
    • Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers
    • Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers
    • Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers
    • Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers
    • Buy cheap Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining from wholesalers

    Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : 8kgs/m2, 11kgs/m2, 14kgs/m2, 18kgs/m2
    Certification : ISO9001 & ISO14001
    Price : $15.00 - $18.00 / Square Meter
    Payment Terms : L/C, T/T
    Supply Ability : 2000 Square Meter/Square Meters per Week
    Delivery Time : 3-4WEEKS
    • Product Details
    • Company Profile

    Cement Sand Concrete Erosion Mat GCCM Blanket Rolls For Ditch Lining

    Concrete Erosion Mat GCCM Rolls/Cement Sand Blanket Rolls For Slope Protection Or Ditch Lining
    We, PIONEERTEX have four types of GCCM products to offer:
    1. Concrete Mat Cloth(CMC) GCCM Rolls( Meet ASTM D8364):
    CMC was reinforced by 3D spacer fabric.
    CMC was backed with HDPE geomembrane to ensure waterproof.
    CMC was not in conflict with CCUK’s patent. PioneerTEX can export CMC worldwide.
    CMC Max Width: 2.1mts.
    2. Cementex GCCM (Cement Cloth) rolls, cement cloth quality is as good as CMC.
    Cementex GCCM=CMC without HDPE geomembrane backing;
    Cementex price is better than CMC rolls.
    Cementex GCCM Rolls Max.Width: 2.1mts.
    3. Concrete Erosion Mat-Cement-Sand Blanket (CSB) GCCM rolls:
    CSB is without HDPE geomembrane backing;
    CSB is without 3D spacer fabric reinforcement;
    CSB is with quilted stitch bonded together to ensure good integrity.
    CSB is with geogrid reinforcement to ensure good compressive strength as Tiltex.
    CSB Max. Width: 4mts.
    4. Concrete Impregnated Canvas Rolls/Concrete Cement Canvas
    CC was also made of 3D spacer cloth with concrete impregnated.
    It is close to similar product made in UK.
    PIONEERTEX CEMENT-SAND BLANKET (CSB) GCCM ROLLS
    TECHNICAL SPECIFICATION
    PIONEERTEX CEMENT-SAND BLANKET GCCM ROLLS was mechanically needle punch bonded composite,
    consist of cement-sand mix,embedded and fixed between two layers of geotextile, and it is also reinforced
    by quilt stitched.
    PROPERTIES OF GEOTEXTILETEST METHODVALUE
    Carrier layer- PP woven geotextile
    and geogrid composite
    EN ISO 9864230G/M2
    Cover layer-PET nonwoven geotextile
    and geogrid composite
    EN ISO 9864300G/M2
    PROPERTIES OF CONCRETETEST METHODVALUE
    Chemical CompositionN/Asand-cement mixture+
    2% short fiber
    DensityTypical1.5g/cm3
    Setting startPN-EN 196-3> 120 min
    PROPERTIES OF CSB GCCMTEST METHODVALUE
    Tensile Strength MD/CMDEN ISO 10319> 20 KN/M(+/-10%)
    CBR Puncture StrengthASTM C 109-02>3.0 KN(+/-10%)
    Compressive StrengthEN ISO 1461740MPa
    Bending StrengthEN ISO 124673-5Mpa
    Water PermeabilityEN ISO 12467no drop of water
    durability against freeze-thawEN ISO 12467R>0.75 pass
    durability against heat-rainEN ISO 12467R>0.75 pass
    durability against warm waterEN ISO 12467R>0.75 pass
    durability against soak-dryEN ISO 12467R>0.75 pass
    Reaction to fireEN 12467B-S1,dO
    Standard Roll DimensionsTypical Value
    Thickness5-15mm
    Width x Length/Roll2.0X5M or 2.0X10M or 2.0X20M/ROLL
    4. (CC), which is similar with made in UK.
    But it is in conflict with CCUK’s patent.
    PioneerTEX have stopped production on this material.
    PioneerTEX GCCM Product Application:

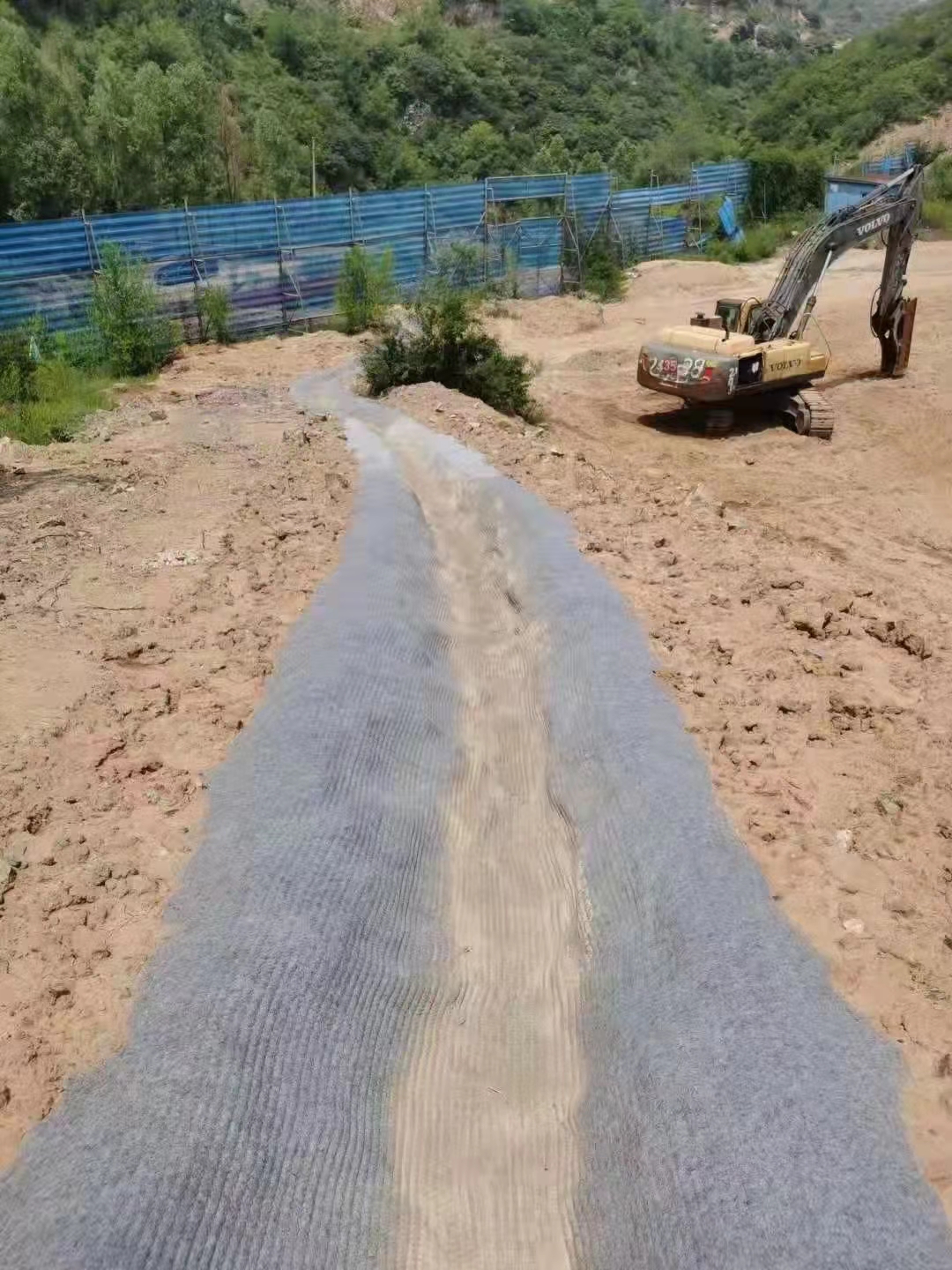

    1. Slope protection,
    2. Ditch lining and bund lining.
    GCCM Rolls Life expectation: 30 years.
