    High Strength PP Multifilament Woven Geotextile Dewatering geotubes For Reclaimation,embankment and breakwater project

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : GT400
    Supply Ability : 30 Bag/Bags per Month
    Price : $300.00 - $2,000.00 / Bag
    Certification : ISO9001 & ISO14001
    Payment Terms : L/C, T/T
    MOQ : 2 pcs
    • Product Details
    • Company Profile

    High Strength PP Multifilament Woven Geotextile Dewatering geotubes For Reclaimation,embankment and breakwater project


    Who are we?


    We, PioneerTEX is a professional manufacturer of geotube and geobag in China.

    We could produce many types of geotube and geobag as per customer's project request.

    All bags and fabrics could be customized.


    PIONEERTEX Geotube & Geobag Product List are as below:


    Quality CodeGT200GT300GT330DGT400GT500
    Mass270gsm BLACK350gsm BLACK350gsm BLACK350gsm WHITE580gsm BLACK
    YarnPP MonofilamentPP Mono/TapePP MonofilamentPP MultifilamentPP Mono/Fabrillated
    Tensile Strength
    (MD/CMD)
    54/4850/5050/5070/10575/128
    OPENING SIZE
    O95(mm)
    0.5-0.70.3-0.50.6-0.80.1-0.20.3-0.5
    ApplicationDewatering
    Filter Jumbo Bag
    Sludge Dewatering
    geotube
    Sludge Dewatering
    geotube
    Breakwater geotube
    Sludge dewatering
    Sludge Dewatering
    Geotube
    Quality CodeGT600GT750GT800GT1000Jumbo Sand Bag
    Mass600gsm WHITE750gsm BLACK850gsm BLACK1300gsm BLACK380gsm WHITE
    YarnPP MultifilamentPP Mono/FabrillatedPP Mono/FabrillatedPP Mono/FabrillatedPP Woven 230gsm
    /Nonwoven 150gsm
    Tensile Strength
    (MD/CMD)
    150/150120/120130/130200/20050/50
    OPENING SIZE
    O95(mm)
    0.1-0.20.3-0.50.3-0.50.4-0.60.1-0.2
    ApplicationBreakwater GeotubeBreakwater GeotubeBreakwater GeotubeBreakwater GeotubeBreakwater geotube
    Anti-scour mattress
    1. GT200 fabric can work as Dewatering Filter Jumbo Bag.
    2. GT400 Geotube can work as Breakwater Geotube anchor tube;
    3. GT500,GT600,GT750,GT800 and GT1000 Geotube can work as Breakwater Geotube for shoreline protection.

    What is a Geotube?


    PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
    It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.


    How do a PioneerTEX Geotube work?


    Gravimetric drainage of the sludge is accompanied by a volume reduction.
    Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.


    Is Polymer Flocculant Necessary for Dewatering?


    Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
    The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.


    Can we do a trial on the geotube before purchasing?


    Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
    Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.


    What is GT400 geotube?


    PioneerTex Dewatering Breakwater Geotube-PioTube GT400 was designed and developed for some low cost shoreline protection or embankment project. It was made of PP multifilament yarn. And its flow rate is also good because of its special twill structure. Since its fabric weight is less than standard GT500 fabric, Max. Filling height of geotube is not more than 1.8mts.


    Data Sheet is as below:


    Material: PP multifilament woven geotextile for dewatering geotube.
    ItemTest MethodUnitMean Value
    MDXD
    Mass Per unti areaEN ISO 10319GSM350
    Tensile StrengthASTM D 4595KN/M76108
    Elongation at breakASTM D 4595%2528
    Tear StrengthASTM D 4533N9601500
    Puncture StrengthASTM D 4533N1050
    Seaming strengthASTM D 4844KN/M54.5
    Flow rateASTM D 4491L/min/M2700
    PermeabilityASTM D 4491cm/sec3.00E-02
    Anti-UV(500hours)ASTM D 4355%60

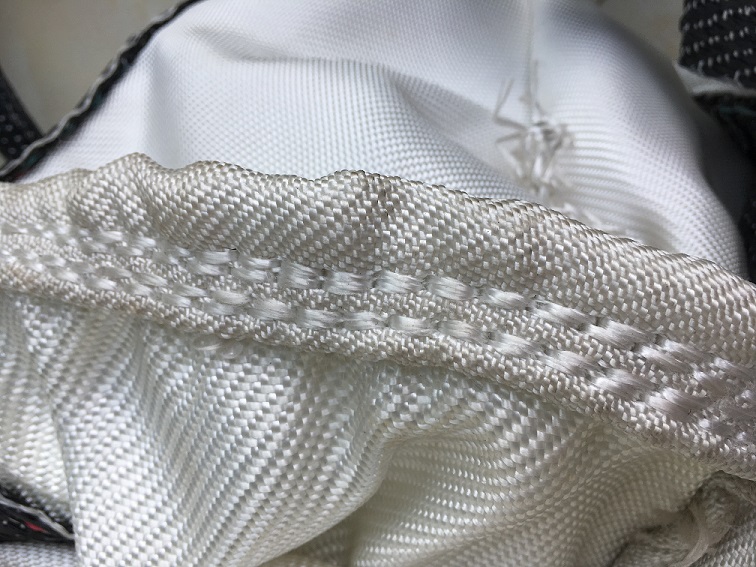

    gt400 003.jpg
