70/70 KN/M High Strength PP Woven Geotube Breakwater for Coastal Protection

70/70KN/M Dewatering Geotube for Coastal Protection/Sand Geobag

Who are we?

We, PioneerTEX is a professional manufacturer of geotube and geobag in China.

We could produce many types of geotube and geobag as per customer's project request.

All bags and fabrics could be customized.

PIONEERTEX Geotube & Geobag Product List are as below:

PIONEERTEX GEOTUBE SPECIFICATION.pdf

PioneerTex Geotube List.pdf

What is a Geotube?

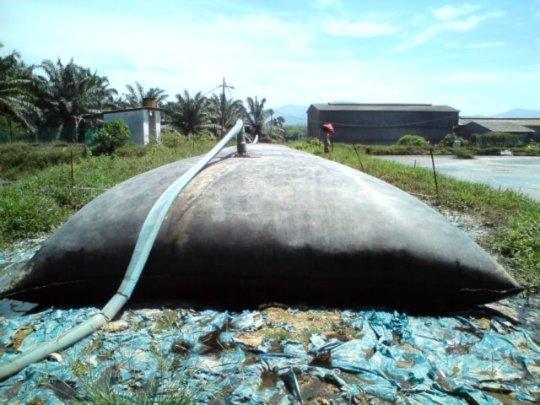

PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.

How do a PioneerTEX Geotube work?

Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.

Is Polymer Flocculant Necessary for Dewatering?

Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.

Can we do a trial on the geotube before purchasing?

Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.

What is GT300 geotube?

PioneerTex Sludge Dewatering Geotube-PioTube GT300 was designed and developed for some low cost dredging job or project. It was made of PP tape yarn and PP round yarn. And its flow rate is also good. Since its fabric weight is less than standard GT500 fabric, Max. Filling height of geotube is not more than 1.6mts.

GT300 data sheet is as below:

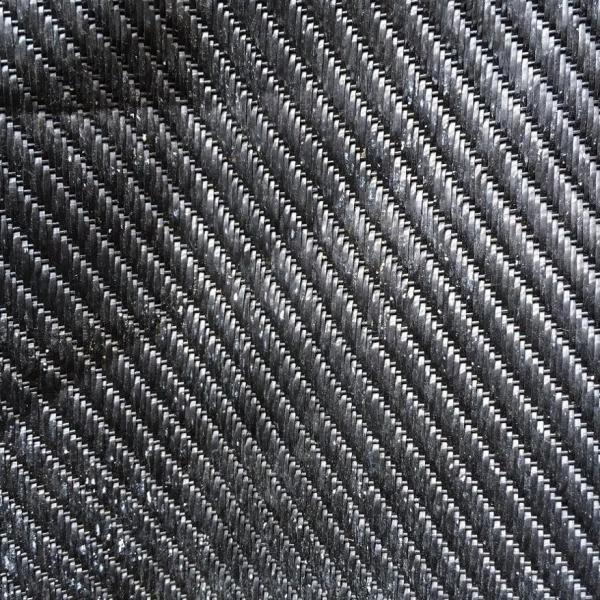

Material: PP mono/Fabrillated Yarn woven geotextile for Geotube
Material Quality Code: PIONEERTEX-GT300

Mechanical Properties	Test Method	Unit	Typical Value
Mechanical Properties	Test Method	Unit	MD	XD
Tensile Strength	ASTM D 4595	KN/M	70	70
Elongation at break	ASTM D 4595	%	25	25
Seam Strength	ASTM D 4884	KN/M	35
CBR Puncture Strength	ASTM D 6241	KN	5

Hydraulic Poperties	Test Method	Unit	Typical Value
Opening Size(AOS)	ASTM D 4751	mm	0.4
Flow Rate	ASTM D 4491	l/min/m2	800
Anti-UV(500hours)	ASTM D 4355	%	85

Physical Properties	Test Method	Unit	Typical Value
Mass Per Unti Area	ASTM D5261	G/M2	380

Packaging & Shipping

Exporting standard PP woven fabric packaging outside without pallet.
