    Modified Bitumen Coated Glassfiber Geogrid 110-600gsm

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : Glasgrid
    Supply Ability : 50000 Square Meter/Square Meters per Month
    Price : $0.50 - $1.80 / Square Meter
    Certification : ISO9001 and ISO14001
    Payment Terms : L/C, T/T
    Delivery Time : 1-2weeks
    • Product Details
    • Company Profile

    Modified Bitumen Coated Glassfiber Geogrid 110-600gsm

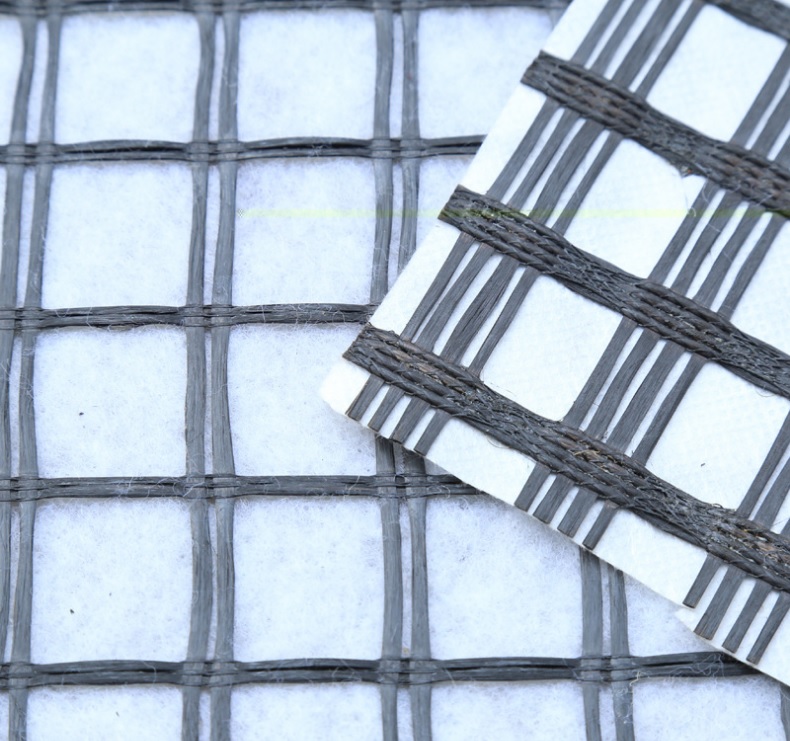

    Modified Bitumen Coated Glass Geogrid

    bonded with Needle Punch Nonwoven Geotextile Composite Paving Mat-Combogrid


    GLASS FILAMENT REINFORCED NONWOVEN GEOTEXTILE COMPOSITE


    FOR PAVEMENT REINFORCEMENT INTERLAY


    PTT CHINA not only produce needle punch nonwoven geotextile,

    but also can produce biaxial polyester yarn reinforced nonwoven geocomposite to create one intergrated system to combine nonwoven geotextile and geogrid advantage for civil engineering.


    Glass Pavement Reinforcement Geo-composite is composed of Glass Fiber and Needle punched Non-woven Geotextile. It is one of the new geosynthetics material which is used in the construction and reconstruction of asphalt road surface to avoid reflective split, water damage and reinforcement road surface strength.


    After absorbing asphalt material, the Geo-composite will shape into a stable construction layer possessing physical properties such as perfect waterproof performance, high heat resistance and good anti-corrosion ability and with many advantages as high tensile strength, low expansion coefficient, good tenacity and convenient in construction.


    Especially, it will increase the ability of crack resistance at low as well as high temperatures. The glass geo-composite compounded with asphalt will also resist reflective and fatigue cracking thereby extending the service life of the road.


    FEATURES:

    High tensile strength

    Preventing permeating performance

    The anti-crack performance

    Temperature resistance performance

    Low expansion coefficient

    Good tenacity and convenient in construction


    APPLICATIONS:

    Road surface construction, reconstruction and widening

    Paving asphalt pavement on the old cement concrete road

    Repairing split of the asphalt road surface, or maintenance of old asphalt road


    CHANGZHOU PIONEER TEXTILE TECHNOLOGY LTD
    Hybrid Pavement Reinforcement Interlay System
    Glass Filament Reinforced Needle Punch Nonwoven Geotextile Composite
    Technical Specification
    PropertiesUnitGC-30/30GC-50/50GC-100/100GC-120/120
    Materials/Glass Filament + PET Needle Punch Nonwoven Geotex
    Nonwoven/120gsm Polyester Needle Punch Nonwoven
    Coating/non-coating
    Mesh size of Gridmm25.4 x 25.4
    Ultimate Tensile StrengthKN/M30 x 3050 x 50100 x 100120 x 120
    MD x CMD
    Elongation at Ultimate%<3<3<3<3
    Roll WidthM5.95 Max.
    Roll LengthM50 - 100

    POLYESTER FILAMENT WOVEN GEOTEXTILE AND NONWOVEN COMPOSITE


    POLYESTER FILAMENT REINFORCED NONWOVEN COMPOSITE-PIONEERGRID
    Technical Specification
    PIONEERGRID was manufactured out of Polyester multifilament by unique warp knitting,and sititched with PP staple fiber needlepunched
    nonwoven geotextile to create the composite.It combines the advantage of PP nonwoven and PET woven Geogrid to offer Separation,
    reinforcement,filtration for sub-base soft soil.
    Geogrid Properties Test MethodUnit30/3050/5080/80100/100150/150200/200
    Ultimate Strength(1)MD & CMDASTM D6637KN/M305080100150200
    Strain at Ultimate(2)MD & CMD%101010101010
    Tension at 2% Strain(1)MD & CMDKN/M91728355265
    Tension at 5% Strain(1)MD & CMDKN/M18345670104130
    Aperture Size  mm3X23X23X24X55X55X5
    Nonwoven GeotextilePP/PET STAPLE FIBER NEEDLE PUNCH NONWOVEN
    Grab Tensile StrengthMDASTM D5261N580
    Grab Tensile StrengthCDN550
    Grab Elongation(MD)MD%50
    Grab Elongation(CD)CD%70
    Composite PhysicalPOLYESTER FILAMENT REINFORCED NONWOVEN COMPOSITE ( PIONEERGRID)
    Roll WidthMaxN/AM5.2
    Roll Length(3)MiniM50
    NOTE: (1) MARV Values, (2) Average, (3) Length can be made to order
    PioneerGrid Typical Applications:
    * Road Reinforcement and Soil Stablization
    * Railway Ballast Reinforcement over soft foundations
    * Secondary Slope and Wall Reinforcement

    GLASS FILAMENT WOVEN GEOGRID BONDED WITH NONWOVEN GEOTEXTILE


    SPECIFCAION IS THE SAME AS GLASS COMBOGRID.


    DIFFERENCE IS THE CONNECTION OF GLASS GEOGRID AND NONWOVEN.


    BONDING COMPOSITE COULD BE MADE BY HIGHER WEIGHT OF NONWOVEN GEOTEXTILE.
