    White Geosynthetic Cementitious Composite Mat GCCM 13mm for Slope Protection

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : 8kgs/m2, 11kgs/m2, 14kgs/m2, 18kgs/m2
    Certification : ISO9001 & ISO14001
    Price : $15.00 - $18.00 / Square Meter
    Payment Terms : L/C, T/T
    Supply Ability : 2000 Square Meter/Square Meters per Week
    Delivery Time : 3-4WEEKS
    • Product Details
    • Company Profile

    White Geosynthetic Cementitious Composite Mat GCCM 13mm for Slope Protection

    White Color 13mm Geosynthetic Cementitious Composite Mat(GCCM)-Cement Sand Blanket/Concrete Blanket for Slope Protection

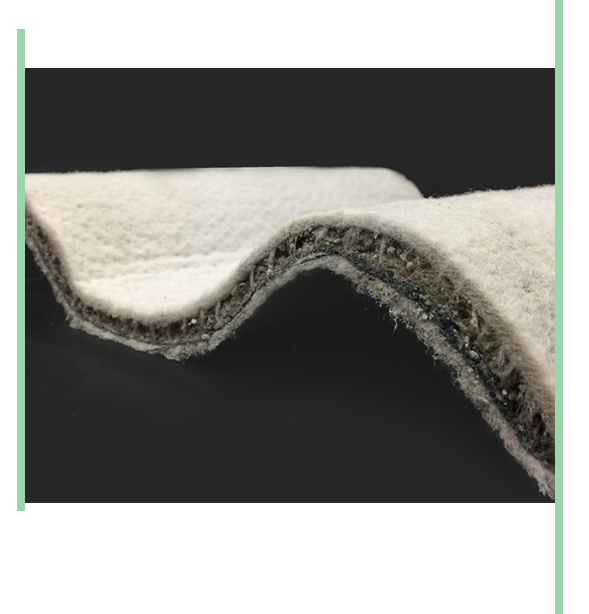

    What's the structure of Cement Sand Blanket ( Concrete Erosion Control Mat )?


    CSB GCCM was made of woven geotextile, nonwoven geotextile and Sand mixed Cement;

    Cement Sand mixture was blended with glass/basalt fiber.

    And the specially formulated dry concrete powder mix will be also mixed with special sand and special addtive for reinforcement

    to offer high temperature compressive strength more than 60Mpa.


    PIONEERTEX Cement Sand Blanket was also reinforced by Glassfiber Geogrid at the bottom and on the top of composite to offer

    premium flexbile bending strength.


    It can also work well for river bank protection or ditch lining for erosion control.

    CSB is most cost effective comparing with or concrete mat cloth.


    PIONEERTEX CEMENT-SAND BLANKET (CSB) GCCM ROLLS
    TECHNICAL SPECIFICATION
    PIONEERTEX CEMENT-SAND BLANKET GCCM ROLLS was mechanically needle punch bonded composite,
    consist of cement-sand mix,embedded and fixed between two layers of geotextile, and it is also reinforced
    by quilt stitched.
    PROPERTIES OF GEOTEXTILETEST METHODVALUE
    Carrier layer- PP woven geotextile
    and geogrid composite
    EN ISO 9864230G/M2
    Cover layer-PET nonwoven geotextile
    and geogrid composite
    EN ISO 9864300G/M2
    PROPERTIES OF CONCRETETEST METHODVALUE
    Chemical CompositionN/Asand-cement mixture+
    2% short fiber
    DensityTypical1.5g/cm3
    Setting startPN-EN 196-3> 120 min
    PROPERTIES OF CSB GCCMTEST METHODVALUE
    Tensile Strength MD/CMDEN ISO 10319> 20 KN/M(+/-10%)
    CBR Puncture StrengthASTM C 109-02>3.0 KN(+/-10%)
    Compressive StrengthASTM D 832960MPa
    Bending StrengthEN ISO 124673-5Mpa
    Water PermeabilityEN ISO 12467no drop of water
    durability against freeze-thawEN ISO 12467R>0.75 pass
    durability against heat-rainEN ISO 12467R>0.75 pass
    durability against warm waterEN ISO 12467R>0.75 pass
    durability against soak-dryEN ISO 12467R>0.75 pass
    Reaction to fireEN 12467B-S1,dO
    Standard Roll DimensionsTypical Value
    Thickness5-15mm
    Width x Length/Roll2.0X5M or 2.0X10M or 2.0X20M/ROLL


    How many types of Concrete Erosion Control Mat (Cement Sand Blanket) are we manufacturing?


    CSB GCCM is available in 5 weights:


    CSB8,

    CSB10

    CSB12

    CSB15.

    CSB18


    Normally, CMCC color is white or grey as below:



    The Concrete Mat Cloth rolls before hydration is as below:


    Application:


    Ditch line

    Slope Protection



    What's the structure of Concrete Mat Cement Cloth GCCM?


    CMC GCCM was made of woven geotextile, nonwoven geotextile and Sand mixed Cement;

    The specially formulated dry concrete powder mix will be mixed with special sand and special addtive for reinforcement.



    How many types of Concrete Mat Cement Cloth GCCM are we manufacturing?


    CMCC GCCM is available in 5 weights:


    CMCC8,

    CMCC10

    CMCC12

    CMCC15.

    CMCC18


    Normally, CMCC color is white or grey as below:



    The Concrete Mat Cloth rolls before hydration is as below:



    Application:


    Ditch line

    Slope Protection
