    3D HDPE Geoweb Geocells For Erosion Control Slope Protection

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : PT-CCS
    Supply Ability : 10000 Square Meter/Square Meters per Week
    Price : $2.22 - $2.65 / Square Meter
    Certification : ISO 9001
    Payment Terms : L/C, T/T
    Delivery Time : 2-3weeks
    MOQ : 1000m2
    • Product Details
    • Company Profile

    3D HDPE Geoweb Geocells For Erosion Control Slope Protection

    3D HDPE Geocell Geoweb Cellular Confinement System for Concrete Road Construction, erosion control Slope Protection


    What is the Geocell System?


    HDPE Geocell Is a new type of high-strength geosynthetics, which is popular in domestic and abroad. It is a kind of three-dimensional network structure shaped by high-strength HDPE sheets through ultrasonic welding of high strength. Currently, it is being widely used in construction, such as highway, railway, bridge, dyke, etc.


    PTT CHINA GEOCELL TECHNICAL SPECIFICATION

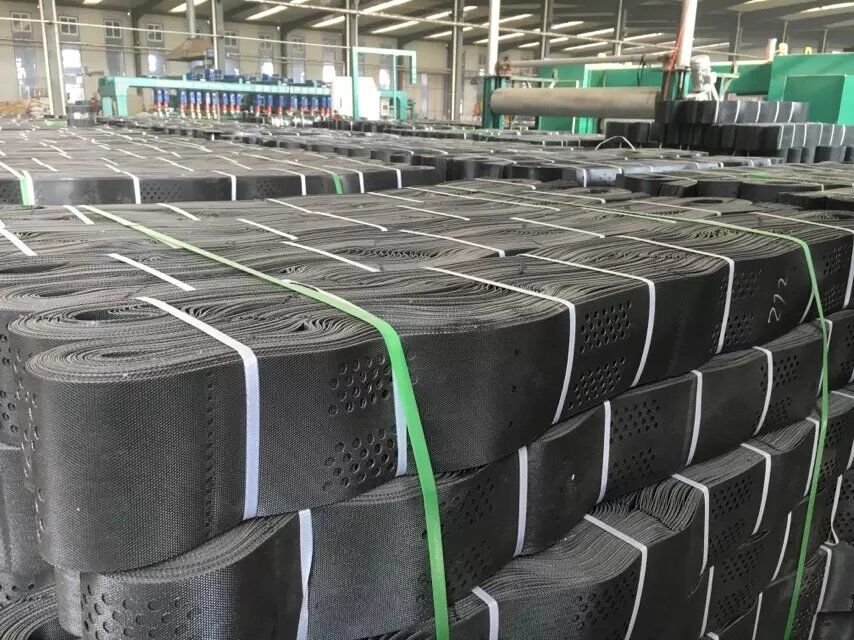

    PTT Geocell is a perforated cellular confinement system engineered from HDPE sheets by ultrasonic welding.
    It's available in a number of depth and cell opening combinations.Pioneer Geocell were supplied in a
    folded configuration that minimises transport costs to site, and it can be readily expanded on site for
    very quick installation. Pioneer Geocell has been perforated to ensure that each cell does not become
    water saturated during use.
    ITEM
    NO.
    Cell Depth
    (mm)
    Seam Peel Strength(N)Carbon Black
    Content (%)
    Welding
    Spacing
    (mm)
    Expanded
    Cell Size(mm)
    WideXLength
    Expanded Panel Size(mm)
    WideXLength
    HDPE Sheet
    Thickness
    (mm)
    GS-50506001.5-2.0330244X2032.44X6.150.9,

    1.0,

    1.1,

    1.2,

    1.5,

    2.0

    mm
    400295X2504X5
    660488X4062.44X12.29
    GS-757510601.5-2.0330244X2032.44X6.15
    400295X2504X5
    660488X4062.44X12.29
    GS-10010014201.5-2.0330244X2032.44X6.15
    400295X2504X5
    660488X4062.44X12.29
    GS-15015021301.5-2.0330244X2032.44X6.15
    400295X2504X5
    660488X4062.44X12.29
    GS-20020028401.5-2.0330244X2032.44X6.15
    400295X2504X5
    660488X4062.44X12.29

    3D HDPE Geoweb Geocells For Erosion Control Slope Protection

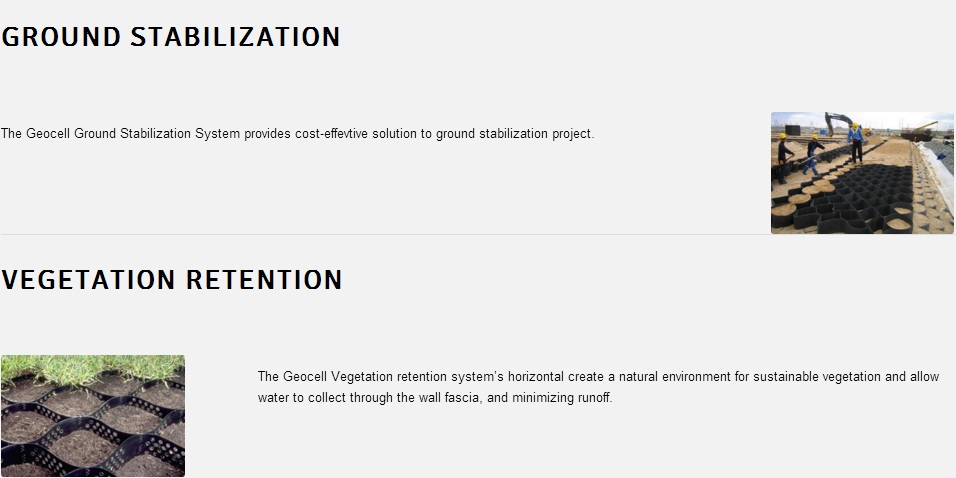

    Application AreaApplication of Geosynthetics
    HydraulicLagooning and Water Treatment,
    Ornamental Ponds, Golf Courses Aquaculture
    and Desalination Water LagoonsTanks,
    Reservoirs, Liquid WasteFloating Cover Solutions Drainage
    and FiltrationShading Cover Solutions
    EnvironmentTailing ponds, Leach mining,Landfills,
    Landfill Capping,Protection against corrosion,Vertical Barriers
    Civil WorksErosion Control, Secondary Containment,
    Tunnels,Linear and Surface Works,Consolidation of Margins,
    Soil Reinforcement,Soil Separation.
    BuildingParkings,Roofing,Soundproofing building

    3D HDPE Geoweb Geocells For Erosion Control Slope Protection3D HDPE Geoweb Geocells For Erosion Control Slope Protection


    Cellular Confinement System-Geocell
    Technical Specificaiton
    1. Height: 50mm-200mm
    2. Welding distance: 330mm-1000mm
    3. Thickness of sheet: 1.0mm-1.5mm.

    Item No.Height (mm)Tensile strength ofTensile strength
    of connection of cells (N/cm)
    Tensile srength at
    yield of each sheet (N/mpa)
    weldig points( N/cm)
    GS-50-40050≥100≥120≥20
    GS-75-40075≥100≥120≥20
    GS-100-400100≥100≥120≥20
    GS-150-400150≥100≥120≥20
    GS-200-400200≥100≥120≥20

    Dimension
    Geocell Welding Spacingmm330400660
    Expanded Cell Sizemm244 X 203295 X 250488 X 406
    (width×length)
    Expanded Panel Sizem2.44 X 6.154 X 52.44 X 12.29
    (width×length)
    Expanded Panel Aream215 ±1%20 ±1%30 ±1%
