    GT500 Sludge Dewatering Geotube for dredging project or Shoreline protection breakwater geotube

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : GT500
    Supply Ability : 5 Bag/Bags per Day
    Price : $400.00 - $2,000.00 / Bag
    MOQ : 2 pcs
    • Product Details
    • Company Profile

    GT500 Sludge Dewatering Geotube for dredging project or Shoreline protection breakwater geotube

    GT500 Sludge Dewatering Geotube for dredging project or Shoreline protection breakwater geotube


    We, PioneerTEX is a professional manufacturer of geotube and geobag in China.


    We could produce many types of geotube and geobag as per customer's project request.

    All bags and fabrics could be customized.


    PIONEERTEX Geotube & Geobag Product List are as below:


    PIONEERTEX GEOTUBE SPECIFICATION.pdf


    PioneerTex Geotube List.pdf


    What is a Geotube?


    PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
    It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.


    How do a PioneerTEX Geotube work?


    Gravimetric drainage of the sludge is accompanied by a volume reduction.
    Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.


    Is Polymer Flocculant Necessary for Dewatering?


    Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
    The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.

    Can we do a trial on the geotube before purchasing?

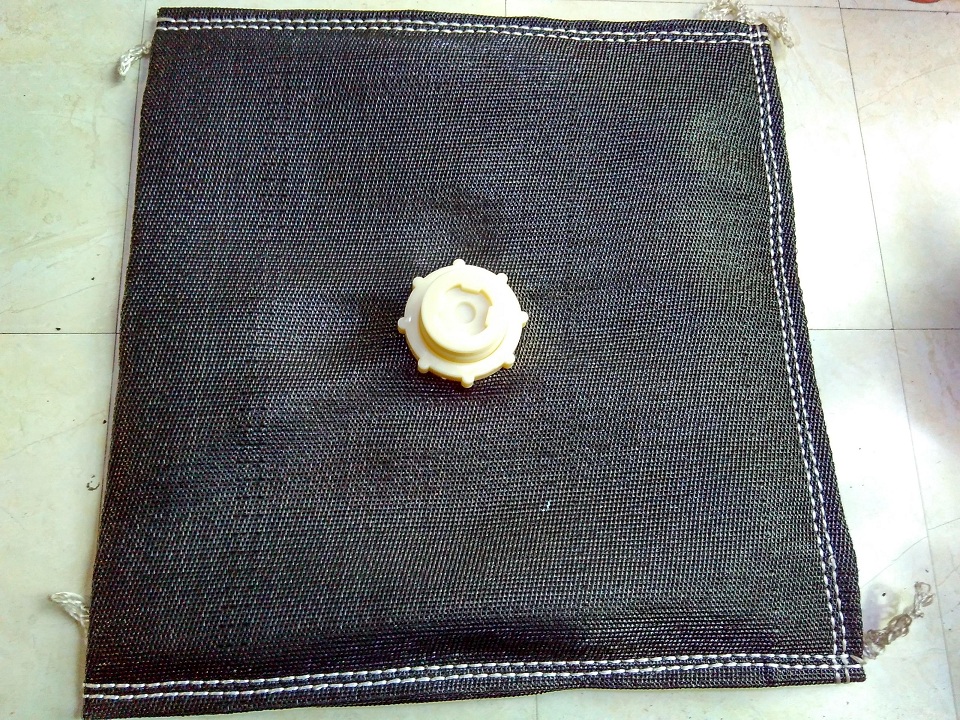

    Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
    Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.



    PioneerTEX Geotube( PioTube) Competitive Advantage:
    1. Bi-axial strengthened fabric(up to 250KN/MX250KN/M) adequate for sizable tubular structure.
    2. made-to-order specification and design to meet the project requirements.
    3. Great permeability to shorten the sedimentation and timely attain the required height.
    4. Fine stitch work sufficient to high pumping pressures.
    5 Good durability to serve the needed long service life in projects.
    6. Economical art in filling construction and working duration.
    7. Diverse sizable dimensions in order to reach high volume containement.
    8. Application to tolerable dewatering area without leaving down the performance.

    GT500 Specification ( Technical Data Sheet)

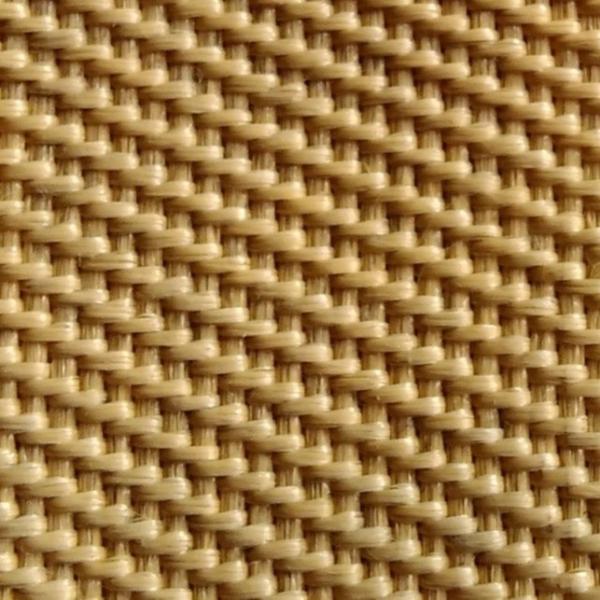

    Material: PP Mono/Fabrillated woven geotextile for GEO-TUBE
    Material Quality Code: PIONEERTEX-GT500
    Mechanical PropertiesTest MethodUnitTYPICAL
    MDXD
    Tensile StrengthASTM D 4595KN/M75105
    Elongation at breakASTM D 4595%2525
    Seam StrengthASTM D 4884KN/M60
    CBR Puncture StrengthASTM D 6241KN8
    Hydraulic PopertiesTest MethodUnitTYPICAL
    Opening Size(AOS)ASTM D 4751mm0.425
    Flow RateASTM D 4491l/min/m2800
    Anti-UV(500hours)ASTM D 4355%85
    Physical PropertiesTest MethodUnitTYPICAL
    Mass Per Unti AreaASTM D5261G/M2585
    ThicknessASTM D5199mm1.3
