    Combigrid Waterproofing Geotextile

    Ask Lasest Price
    Brand Name : PIONEERTEX
    Model Number : Glass-Polypave
    Supply Ability : 1000 Square Meter/Square Meters per Day
    Price : $0.35 - $0.85 / Square Meter
    MOQ : 2000M2
    • Product Details
    • Company Profile

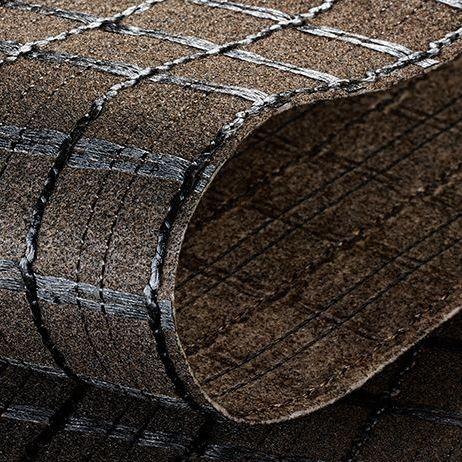

    Combigrid Waterproofing Geotextile

    PioneerTEX Glass-Polypave


    Glass Filament Reinforced Nonwoven Paving Mat Geocomposite Coated Bitumen for Asphalt Overlay Reinforcement


    Instruction:


    PioneerTex Glass Filament Reinforced Nonwoven Paving Mat is an asphalt reinforcement composite which combines a high tensile E type Fiberglass grid with a lightweight non-woven by warp-knitting processing. Then both of them coated with modified bitumen to strengthen the bond with the asphalt layers.


    This glass-polypave composite provides excellent performance in stress relief and to prevent reflective cracking in asphalt overlays. PioneerTex glass filament reinforced nonwoven paving mat geo-composite provides significantly greater tensile strength at low strain when compared to the conventional paving fabric and mats, which reduces maintenance costs by delaying reflective cracking and extends the service life of the overlay.

    Applications:

    Surface course reinforcement

    Cracks prevention and road maintanance and repair

    Asphalt or Concrete road resurfacing

    Airport Construction


    Features:

    High-strength, low elongation

    High asphalt absorption / retention

    Good separation against moisture and gases to road base.

    Better bonding strength with surface layers.

    Easy installation and save labor cost.


    Pioneer's Glass-Polypave® is Glass filament reinforced light weight nonwoven composite for asphalt overlay,which was
    made of continuous glassfiber yarn and PP/PET SB NW.The glassfiber yarn was warp-knitted into one layer of PP/PET
    Spunbond Nonwoven to create the integrated geocomposite. Polypave was treated by special asphalt coating on both
    sides to improve its waterproof performance further.This product make the best advantage of continuous glassfiber
    yarn woven geogrid and SB Nonwoven Geotextile .So it is very suitable for anti-crack pavement application.
    ITEMTEST METHODUNITBT10BT20BT30BT40
    PP/PET Nonwoven
    Mass Per Unit Area
    ASTM D 5261GSM40404040
    Glass-Polypave Mat
    Tensile Strength(CD)
    ASTM D 6637KN/M3050100120
    Glass-Polypave Mat
    Tensile Strength(MD)
    ASTM D 6637KN/M3050100120
    Glass-Polypave Mat
    Elongation(CD)
    ASTM D 4595%3333
    Glass-Polypave Mat
    Elongation(MD)
    ASTM D 4595%3333
    Melt PointN/A190(PP)
    230(PET)
    190(PP)
    230(PET)
    190(PP)
    230(PET)
    190(PP)
    230(PET)
    WidthN/AMTSMAX.5.2 mts
    Roll LengthN/AMTS50-100mts
    Remark:

    1.Above values are on an average basis, and the data was obtained from in-house test laboratory, National test institutes and international test institutes. PioneerTex keeps the right of data changes and the final explanation right.

    2.Liability elusion: This publication should not be considered as engineering advice although information contained here is accurate to the best of our knowledge,
